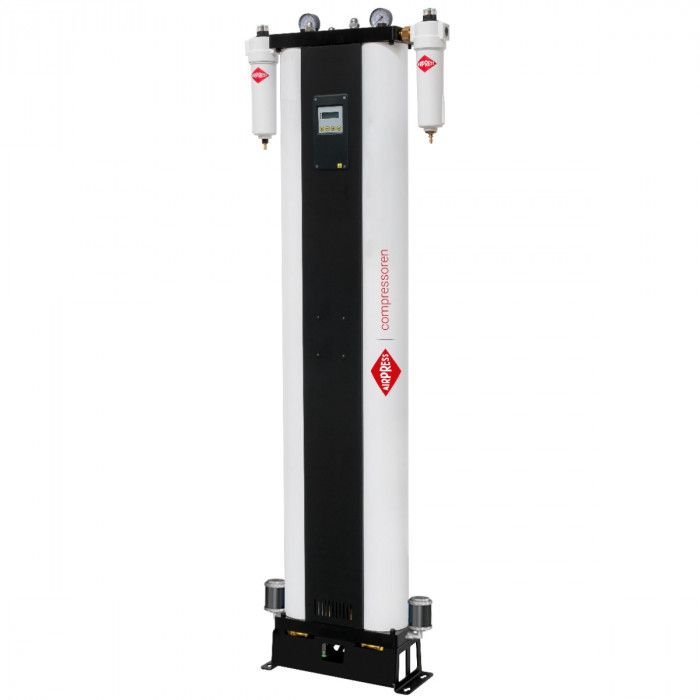

Adsorption Dryer ADS 200 3335 l/min
8.151,44 CHF
Tasse incl.:
8.151,44 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
39200
Product details
| SKU | 39200 |
|---|---|
| EAN 13 | 8712418335828 |
| Weight (netto) (kg) | 182,2 kg |
| Connection size (") | 1 |
| Pressure dew points (°C) | -40 (-25 / -70) |
| Working pressure (bar) | 4 - 16 |
| Nominal value flow inlet (Nm3/h) | 200 m³/h3,333 m³/min |
| Nominal value flow inlet (l/min) | 3.333 L/m5,555 L/h |
| Nominal value flow outlet (Nm3/h) | 158 m³/h2,633 m³/min |
| Nominal value flow outlet (l/min) | 2.633 L/m4,388 L/h |
| Consumption for regeneration (l/min) | 700 L/m1,167 L/h |
| Power consumption (W) | <70 |
|---|---|
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| IP classification | IP65 |
| Prefilter (type) | S filter - 0.01 µm |
| Postfilter (type) | R filter - 1 µm |
| Residual oil content (mg/m3) | <0.01 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 45 |
| Noise level dB (A) (0 m) | <100 |
| Distance sensor | No |
