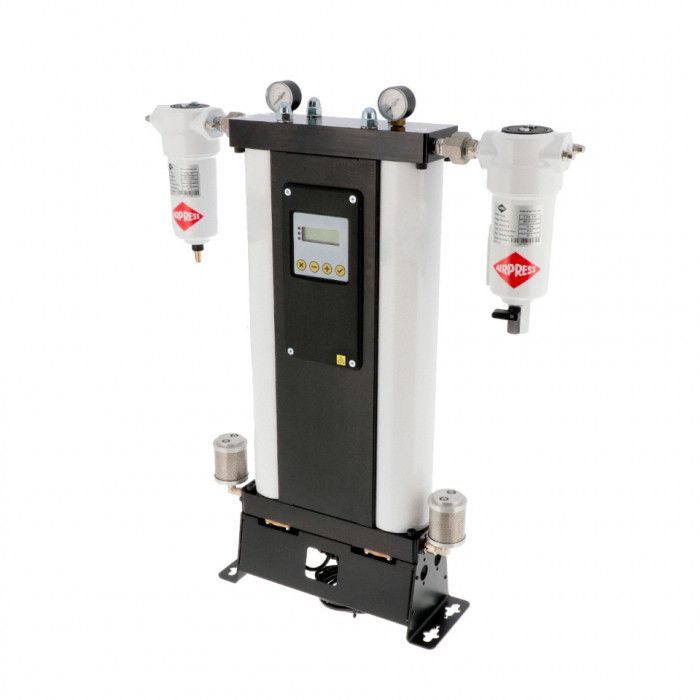

Adsorption Dryer ADS 24 400 l/min
2.499,06 CHF
Tasse incl.:
2.499,06 CHF
2.311,80 CHF
Tasse incl.:
2.499,06 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
39024
Product details
| SKU | 39024 |
|---|---|
| EAN 13 | 8712418361629 |
| Weight (netto) (kg) | 19,00 |
| Connection size (") | 3/8 |
| Nominal value flow inlet (Nm3/h) | 24 |
| Nominal value flow inlet (l/min) | 400 |
| Nominal value flow outlet (Nm3/h) | 19 |
| Nominal value flow outlet (l/min) | 317 |
| Consumption for regeneration (l/min) | 83 |
| Prefilter (type) | S filter - 0.01 µm |
| Postfilter (type) | R filter - 1 µm |
| Residual oil content (mg/m3) | <0.01 |
|---|---|
| Pressure dew points (°C) | -40 (-25 / -70) |
| Working pressure (bar) | 4 - 16 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 45 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Power consumption (W) | <40 |
| IP classification | IP65 |
| Noise level dB (A) (0 m) | <100 |
| Distance sensor | No |
