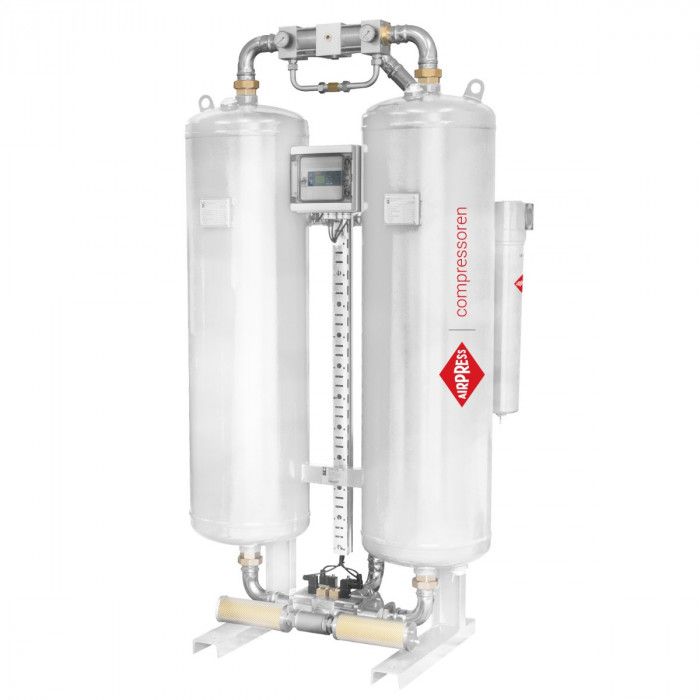

Adsorption dryers ADS 1000 16667 l/min
20.566,05 CHF
Tasse incl.:
20.566,05 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
391000
Product details
| SKU | 391000 |
|---|---|
| EAN 13 | 8712418415001 |
| Connection size (") | 2 |
| Pressure dew points (°C) | -40 (-25 / -70) |
| Working pressure (bar) | 4 - 16 |
| Nominal value flow inlet (Nm3/h) | 1.000 m³/h16,667 m³/min |
| Nominal value flow inlet (l/min) | 16.667 L/m27,778 L/h |
| Nominal value flow outlet (Nm3/h) | 784 m³/h13,067 m³/min |
| Nominal value flow outlet (l/min) | 13.067 L/m21,778 L/h |
| Consumption for regeneration (l/min) | 3.600 L/m6 L/h |
| Power consumption (W) | <60 |
|---|---|
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| IP classification | IP 65 |
| Prefilter (type) | S filter - 0.01 µm |
| Postfilter (type) | R filter - 1 µm |
| Residual oil content (mg/m3) | <0.01 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 60 |
| Noise level dB (A) (0 m) | <100 |
| Distance sensor | No |
