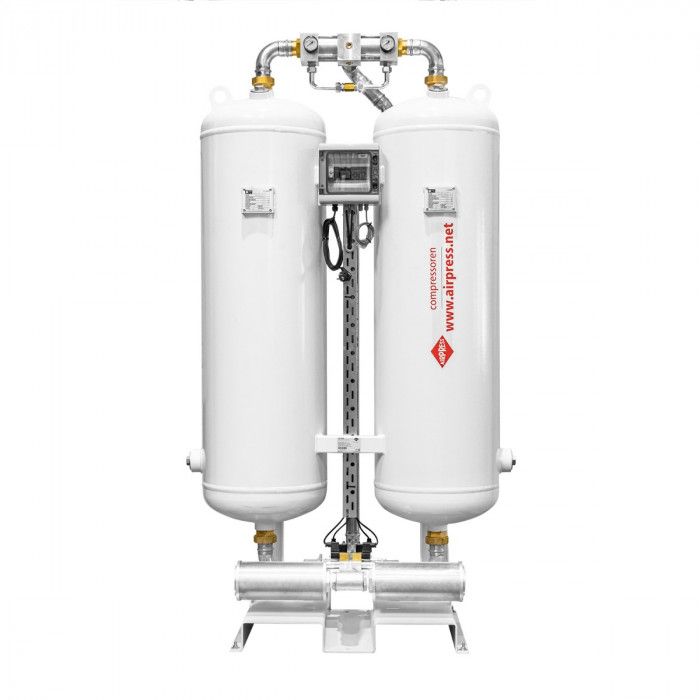

Adsorption dryers ADS 800 12833 l/m
20.589,86 CHF
Tasse incl.:
20.589,86 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
39800
Product details
| SKU | 39800 |
|---|---|
| EAN 13 | 8712418414820 |
| Weight (netto) (kg) | 134 kg |
| Connection size (") | 2 |
| Pressure dew points (°C) | -40 (-25 / -70) |
| Working pressure (bar) | 4 - 16 |
| Nominal value flow inlet (Nm3/h) | 770 m³/h12,833 m³/min |
| Nominal value flow inlet (l/min) | 12.833 L/m21,388 L/h |
| Nominal value flow outlet (Nm3/h) | 603,5 m³/h10,058 m³/min |
| Nominal value flow outlet (l/min) | 10.058 L/m16,763 L/h |
| Consumption for regeneration (l/min) | 2.775 L/m4,625 L/h |
| Power consumption (W) | <60 |
|---|---|
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| IP classification | IP 65 |
| Prefilter (type) | S filter - 0.01 µm |
| Postfilter (type) | R filter - 1 µm |
| Residual oil content (mg/m3) | <0.01 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 60 |
| Noise level dB (A) (0 m) | <100 |
| Distance sensor | No |
