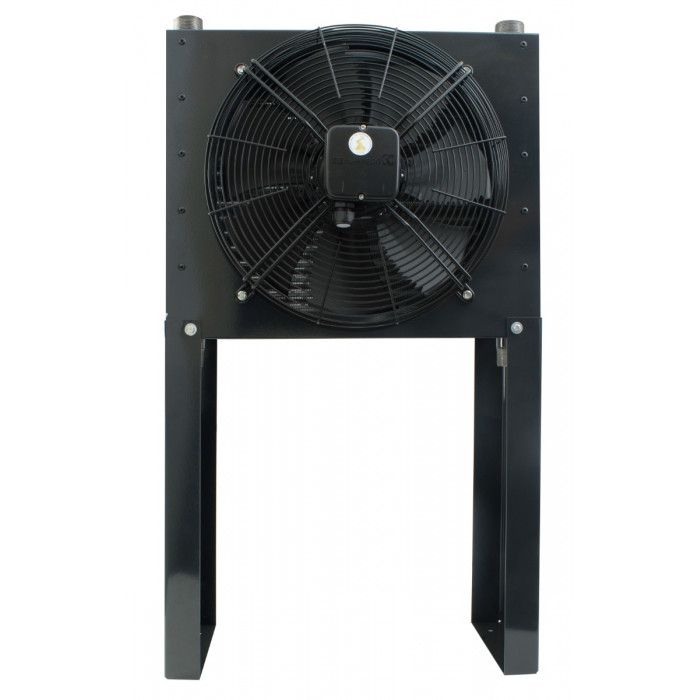

Aftercooler AAC 12900
3.229,80 CHF
Tasse incl.:
3.229,80 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
350129
Product details
| SKU | 350129 |
|---|---|
| Ambient temperature (°C) | 25 |
| Inlet air temperature (°C) | 120 °C |
| Max. inlet air temperature (°C) | 170 °C |
| Inlet air relative humidity (%) | 70 |
| Flow | 12.900 L/m21,5 L/h |
| Flow rate (m3/h) | 774 |
| Pipe size (") | G 2" |
| Cooling air volume (l/min) | 133.333 L/m222,222 L/h |
| Cooling air volume (m3/h) | 8.000 m³/h2,222 kL/s |
| Working pressure (bar) | 7 |
| Maximum pressure (bar) | 15 |
|---|---|
| Pressure drop (bar) | 0,15 bar1,53 mH2O |
| Fan power rating (W) | 370 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418400212 |
| Weight (netto) (kg) | 61 kg |
| Length (mm) | 1.325 mm1,325 m |
| Width (mm) | 490 mm4,9 dm |
| Height (mm) | 1.130 mm1,13 m |
| Fan diameter (mm) | 600 |
