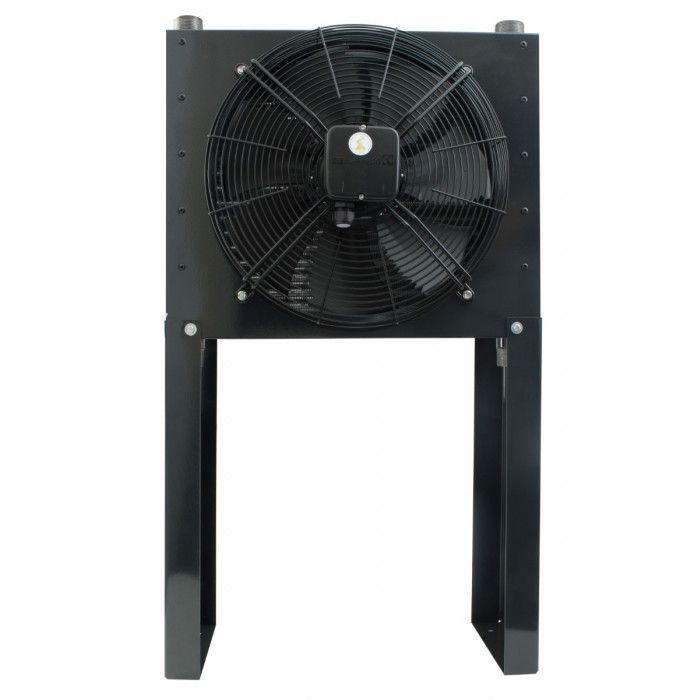

Aftercooler AAC 2100
1.083,36 CHF
Tasse incl.:
1.083,36 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
350021
Product details
| SKU | 350021 |
|---|---|
| Ambient temperature (°C) | 25 |
| Inlet air temperature (°C) | 120 °C |
| Max. inlet air temperature (°C) | 170 °C |
| Inlet air relative humidity (%) | 70 |
| Flow | 2.100 L/m3,5 L/h |
| Flow rate (m3/h) | 126 |
| Pipe size (") | G 1" |
| Cooling air volume (l/min) | 6.667 L/m11,112 L/h |
| Cooling air volume (m3/h) | 400 m³/h6,667 m³/min |
| Working pressure (bar) | 7 |
| Maximum pressure (bar) | 15 |
|---|---|
| Pressure drop (bar) | 0,15 bar1,53 mH2O |
| Fan power rating (W) | 40/52 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 8712418400151 |
| Weight (netto) (kg) | 20 kg |
| Length (mm) | 850 mm8,5 dm |
| Width (mm) | 300 mm3 dm |
| Height (mm) | 715 mm7,15 dm |
| Fan diameter (mm) | 250 |
