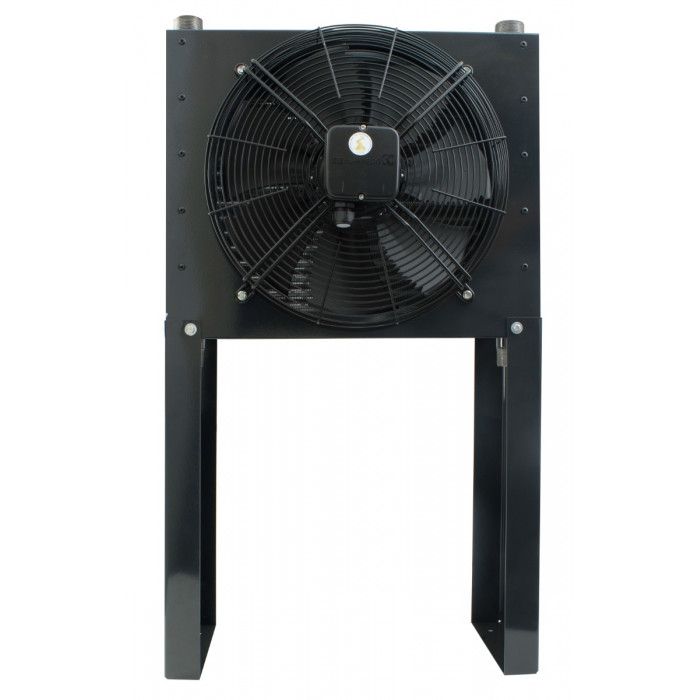

Aftercooler AAC 6500
2.032,03 CHF
Tasse incl.:
2.032,03 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
350065
Product details
| SKU | 350065 |
|---|---|
| Ambient temperature (°C) | 25 |
| Inlet air temperature (°C) | 120 °C |
| Max. inlet air temperature (°C) | 170 °C |
| Inlet air relative humidity (%) | 70 |
| Flow | 6.500 L/m10,833 L/h |
| Flow rate (m3/h) | 390 |
| Pipe size (") | G 2" |
| Cooling air volume (l/min) | 116.667 L/m194,445 L/h |
| Cooling air volume (m3/h) | 7.000 m³/h1,944 kL/s |
| Working pressure (bar) | 7 |
| Maximum pressure (bar) | 15 |
|---|---|
| Pressure drop (bar) | 0,15 bar1,53 mH2O |
| Fan power rating (W) | 750 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418400182 |
| Weight (netto) (kg) | 44 kg |
| Length (mm) | 1.175 mm1,175 m |
| Width (mm) | 440 mm4,4 dm |
| Height (mm) | 980 mm9,8 dm |
| Fan diameter (mm) | 500 |
