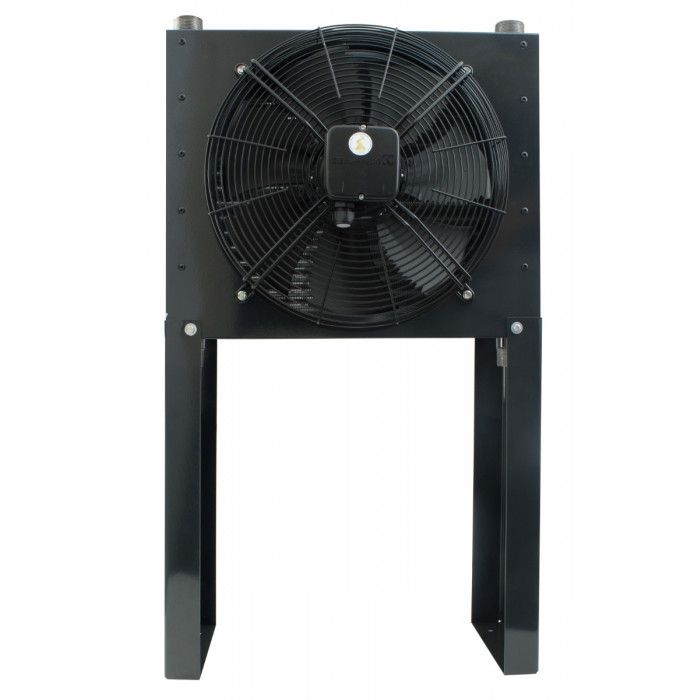

Aftercooler AAC1100
1.058,60 CHF
Tasse incl.:
1.058,60 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
350011
Product details
| SKU | 350011 |
|---|---|
| Ambient temperature (°C) | 25 |
| Inlet air temperature (°C) | 120 °C |
| Max. inlet air temperature (°C) | 170 °C |
| Inlet air relative humidity (%) | 7 |
| Flow | 1.100 L/m1,833 L/h |
| Flow rate (m3/h) | 66 |
| Pipe size (") | G 1" |
| Cooling air volume (l/min) | 7.495 L/m12,492 L/h |
| Cooling air volume (m3/h) | 400 m³/h6,667 m³/min |
| Working pressure (bar) | 7 |
| Maximum pressure (bar) | 15 |
|---|---|
| Pressure drop (bar) | 0,15 bar1,53 mH2O |
| Fan power rating (W) | 40/52 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 8712418400144 |
| Weight (netto) (kg) | 19 kg |
| Length (mm) | 850 mm8,5 dm |
| Width (mm) | 300 mm3 dm |
| Height (mm) | 710 mm7,1 dm |
| Fan diameter (mm) | 250 |
