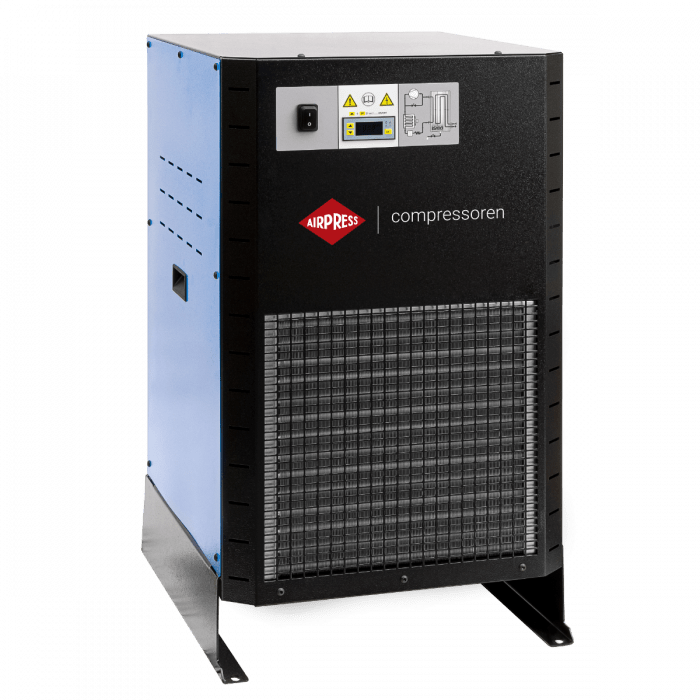

Compressed air dryer RDO 380 1 1/2" 6333 l/min "Timer" automatic condensation drain
2.525,11 CHF
Tasse incl.:
2.525,11 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
3900380
Product details
| SKU | 3900380 |
|---|---|
| EAN 13 | 8712418405101 |
| Length (mm) | 495 |
| Width (mm) | 588 |
| Height (mm) | 826 |
| Weight (netto) (kg) | 90,00 |
| Air flow at 7 bar (l/min) | 6333 |
| Air flow at 7 bar (m3/h) | 380 |
| Air connection (") | 1 1/2 |
| Connection type | Female |
| Maximum pressure (bar) | 16 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Power (kW) | 1.1 |
| Cooling air volume (m3/h) | 1100 |
| Refrigerant | R513A |
|---|---|
| Refrigerant weight (kg) | 1.20 |
| Control panel | Digital |
| Pressure dew points (°C) | 3 |
| Max. inlet air temperature (°C) | 55 |
| Minimum ambient temperature (°C) | 1 |
| Maximum ambient temperature (°C) | 45 |
| Purity class - humidity (ISO 8573-1) | 4 |
| IP classification | IP 65 |
| Heat rejection (kW) | 3.1 |
| Noise level dB (A) (0 m) | >65 |
| Type condensation drain | Automatic "Zero-loss" |
| Type | RDO |
Documenti
Download PDF
Manual (before 2023) FR RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
Manual EN (after 2023) RDO 2-/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900/2600
Manual (before 2023) DE RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
Manual (before 2023) NL RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
