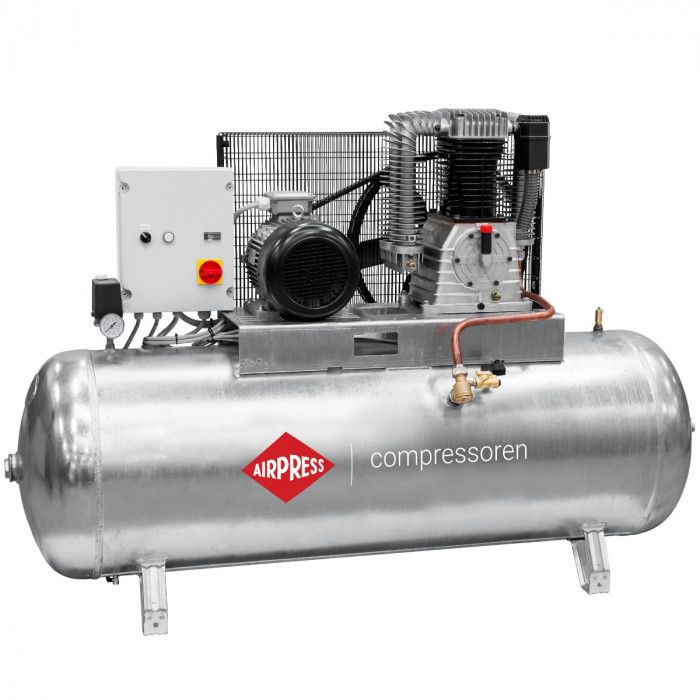

Compressor G 1500-500 SD Pro 14 bar 10 hp 686 l/min 500 l galvanized star delta switch

Name: Compressor G 1500-500 SD Pro 14 bar 10 hp 686 l/min 500 l galvanized star delta switch
SKU: 369674
Price: 4147.80 CHF
Availability: OutOfStock

Non Disponibile

SKU 369674

Product details Product recommended Product documents Product alternative Product reviews Product parts

Product details

SKU	369674
EAN 13	8712418332568
Weight (netto) (kg)	351 kg
Length (mm)	1.930 mm1,93 m
Width (mm)	630 mm6,3 dm
Height (mm)	1.370 mm1,37 m
Drive	V-belt driven
Start	Y-∆
Motor power (hp / kW)	10.0 HP / 7.5 kW
Pump Type	K50
Cylinders	2
Stages	2
Pump speed (rpm)	800
Belt size	SPB 2120
Flywheel diameter (mm)	550 mm5,5 dm
Pulley diameter (mm)	160 mm1,6 dm
Air Receiver	Sì
Capacity air receiver (l)	500
Galvanized tank	Sì

Workload (labor/rest %)	50/50
Maximum pressure (bar)	14
Cut-in pressure (bar)	12 bar1,2 MPa
Intake capacity (l/min)	857 L/m1,428 L/h
Free air delivery (l/min)	596 L/m3,576 kL/s
Free air delivery (m3/h)	35,76 m³/h1,656 L/m
Noise level dB (A) (0 m)	74
Noise level dB(A) (4 m)	54
Noise level dB(A) (7 m)	49
Sound volume reduction	No
Main air connection (")	1/2
Number of reducable couplings air connections	-
Oilfree	No
Voltage (V)	400 V / 50 Hz / 3 Ph
After cooler	Sì
Intercooler	Sì
Wheels	No
Filter with reducer	No
