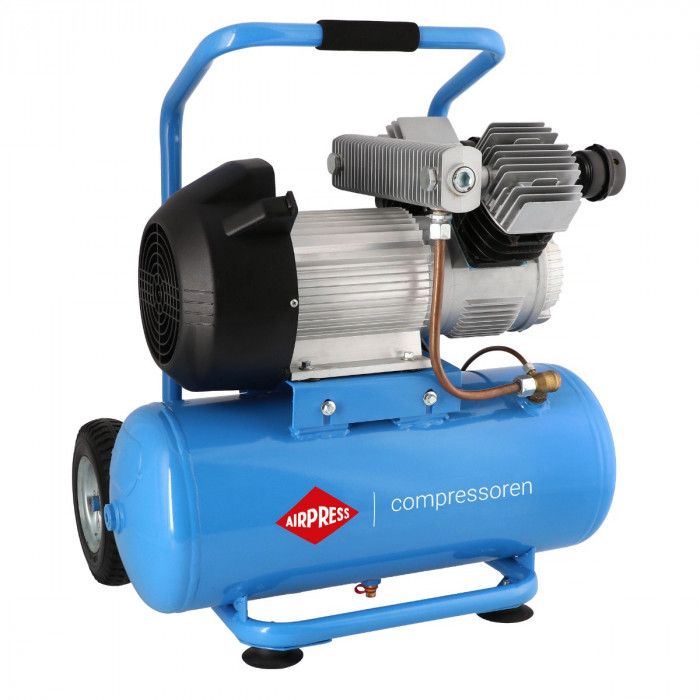

Compressor LM 25-350 10 bar 3 hp 244 l/min 25 l

Non Disponibile

SKU 36826

none

Product details Product recommended Product description Product documents Product reviews Product parts

Product details

SKU	36826
EAN 13	8712418343151
Weight (netto) (kg)	50 kg
Length (mm)	630 mm6,3 dm
Width (mm)	540 mm5,4 dm
Height (mm)	700 mm7 dm
Drive	Direct driven 1:1
Start	Direct
Motor power (hp / kW)	3.0 HP / 2.2 kW
Cylinders	2
Stages	1
Pump speed (rpm)	1450
Air Receiver	Sì
Capacity air receiver (l)	25
Galvanized tank	No
Workload (labor/rest %)	40/60
Maximum pressure (bar)	10
Cut-in pressure (bar)	8 bar

Intake capacity (l/min)	328 L/m1,968 kL/s
Free air delivery (l/min)	245 L/m1,47 kL/s
Free air delivery (m3/h)	14,7 m³/h4,083 dm³/s
Noise level dB (A) (0 m)	96
Noise level dB(A) (4 m)	76
Noise level dB(A) (7 m)	71
Sound volume reduction	No
Connection type	Universal
Main air connection (")	1/4
Number of couplings air connections	1
Number of reducable couplings air connections	1
Oilfree	No
Voltage (V)	230 V / 50 Hz / 1 Ph
After cooler	No
Intercooler	No
Wheels	Sì
Filter with reducer	No

Product recommended

Paint spray pistol 5 l

Paint spray pistol 5 l 45260

29,62 CHF 32,02 CHF

Air hose Euro 20 bar 20 m 14 x 8 mm hybrid polymer

Air hose Euro 20 bar 20 m 14 x 8 mm hybrid polymer 40402

43,45 CHF 46,97 CHF

Paint spray unit 5.5 bar 2 mm nozzle 8.5 l cup

Paint spray unit 5.5 bar 2 mm nozzle 8.5 l cup 45202

233,45 CHF 252,36 CHF

Cyclone filter 1/2" 2585 l/min 16 bar ISO 8573-1

Cyclone filter 1/2" 2585 l/min 16 bar ISO 8573-1 45131

228,59 CHF 247,11 CHF

Air staple gun 6 - 25 mm type 80 with accessories

Air staple gun 6 - 25 mm type 80 with accessories 45427-5

68,82 CHF 74,39 CHF

Air Nail/Staple gun minibrads 15 - 50 mm staples 10 - 40 mm type 90

Air Nail/Staple gun minibrads 15 - 50 mm staples 10 - 40 mm type 90 45420-S

44,65 CHF 48,27 CHF

Air nail gun brads 25 - 64 mm brads included

Air nail gun brads 25 - 64 mm brads included 45438-5

136,49 CHF 147,55 CHF

Air nail gun minibrads 20 - 50 mm minibrads included

Air nail gun minibrads 20 - 50 mm minibrads included 45455-5

74,28 CHF 80,30 CHF

Air nail gun brads 50 - 90 mm brads included

Air nail gun brads 50 - 90 mm brads included 45448-5

212,61 CHF 229,83 CHF

Impact Wrench 1/2" 680 Nm 7000 rpm 6.3 bar +/- 225 l/min

Impact Wrench 1/2" 680 Nm 7000 rpm 6.3 bar +/- 225 l/min 45470

82,50 CHF 89,18 CHF

Impact Wrench 1800 Nm 1/2" +/- 225 l/min with plugin nipple

Impact Wrench 1800 Nm 1/2" +/- 225 l/min with plugin nipple 45411

148,62 CHF 160,66 CHF

Mini Impact Wrench 1302 Nm 1/2" +/- 225 l/min with plugin nipple

Mini Impact Wrench 1302 Nm 1/2" +/- 225 l/min with plugin nipple 45406

124,30 CHF 134,37 CHF

Pneumatic impact wrench 786 Nm 1/2" +/- 225 l/min with 6 sockets

Pneumatic impact wrench 786 Nm 1/2" +/- 225 l/min with 6 sockets 45537

181,89 CHF 196,62 CHF

Product description

With foam tires

Documenti

Download PDF Spare parts list 36826 Manual EN/FR/NL/DE/PL/ES/UA/CZ/LT/LV/EE/RO/SK/HU 36546, 36744-E, 36839-1, 36856, 36832, 36852, 36833, 36843, 36888, 36834, 36826, 36827, 36828, 36844-E, 36891, 36871, 36872 13.12.2024 - BLUE SERIES PISTON COMPRESSORS OIL LUBRICATED_2024 - WEB.pdf 36826 - SPARE PARTS LIST 2024.pdf
