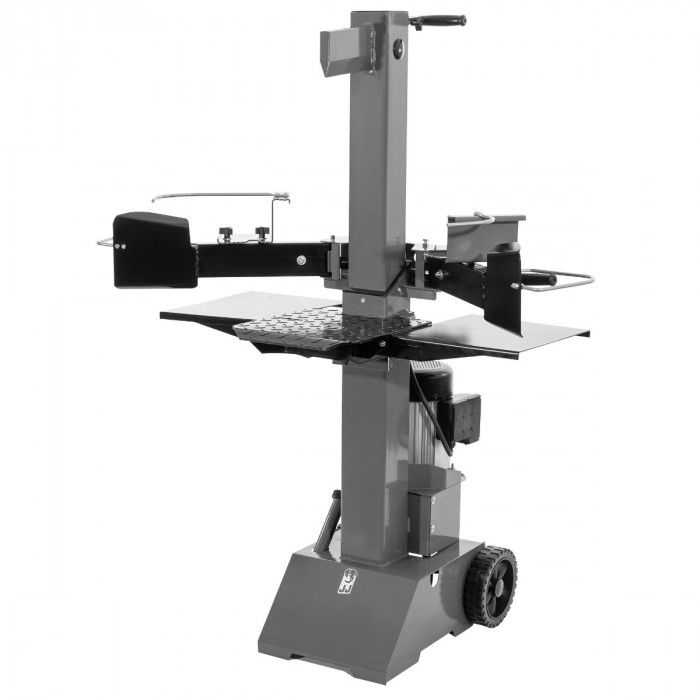

Log splitter vertical model 8 ton
681,25 CHF
Tasse incl.:
681,25 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
772006
Product details
| SKU | 772006 |
|---|---|
| EAN 13 | 8712418382891 |
| Length (mm) | 845 |
| Width (mm) | 935 |
| Height (mm) | 1500 |
| Weight (netto) (kg) | 109,00 |
| Force (kg) | 8.000 |
| Orientation | Vertical |
| Max. log diameter (mm) | 300 |
| Max. log length (mm) | 100-550 |
| Stroke length (mm) | 485 |
| Splitting feed speed (cm/s) | 3.1 |
|---|---|
| Return feed speed (cm/s) | 17.3 |
| Hydraulic oil capacity (L) | 4 |
| Oil type | D3857 |
| Hydraulic pressure Mpa (bar) | 21 Mpa (210 bar) |
| Motor power (kW) | 3 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Ambient temperature (°C) | 5 - 40 |
| Isolation class | IP 54 |
| Anti-kickback pawls | Movable arms |
Product description
Electro-hydraulic drive
Mobile model
