Screw Compressor APS 15 Combi Dry X 10 bar 15 hp 1410 l/min 500 l
Non Disponibile
The APS 15 Combidry X can be purchased in our webshop, but if you would like advice or a suitable offer for a complete industrial installation, you can also contact our expert, Robin Snoek, +31 6 225 20 580 and / or rsnoek@airpress.nl.
Product details
| SKU | 369015 |
|---|---|
| EAN 13 | 8712418372311 |
| Length (mm) | 1850 |
| Width (mm) | 820 |
| Height (mm) | 1880 |
| Weight (netto) (kg) | 530,00 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 15.0 HP / 11.0 kW |
| Motor efficiency class | IE4 |
| Motor type | AC |
| Drive | Direct driven 1:1 |
| Control panel | MAM-860 |
| Available languages | English, Dutch, Polish |
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Air Receiver | Sì |
| Capacity air receiver (l) | 500 |
| Galvanized tank | No |
|---|---|
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 |
| Free air delivery (l/min) | 1410 |
| Free air delivery (m3/h) | 84.6 |
| Noise level dB (A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 43 |
| Plug type | EU |
| Main air connection (") | 3/4 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | No |
| Stages | 1 |
| Start | Y-∆ |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Variable speed (IVR) | No |
Product recommended
Product description

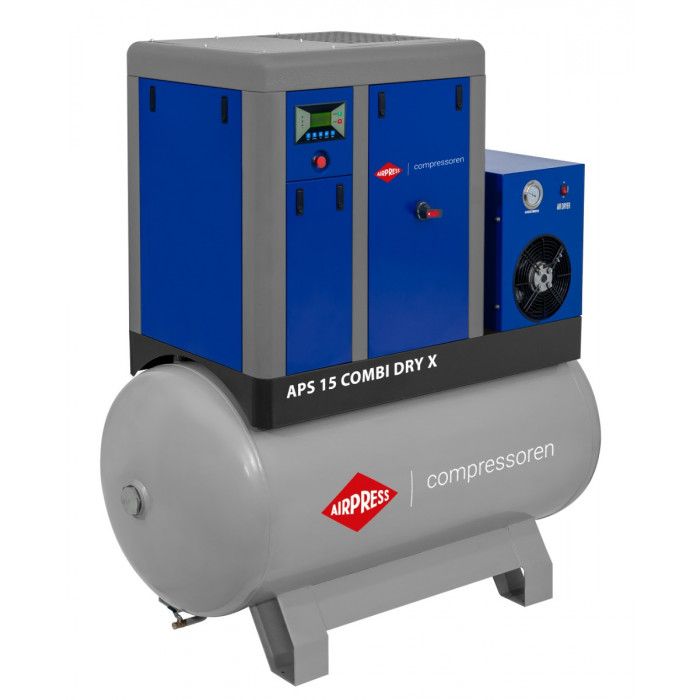

he APS 15 Combidry X is a 11 kW direct-driven screw compressor with a fixed speed and a output of 1410 liters per minute. Due to the compact design, this machine takes up little space, but it does have a 500 liter compressed air boiler and a cooling dryer. The direct drive ensures a 1 on 1 transfer from the electric motor to the screw block, so that no losses occur. A large screw block ensures a high airflow at a low speed. The most important parameters can be read and adjusted on the display of the controller. A large oil cooler with fan, which temperature is switched, ensures proper cooling without unnecessary energy consumption. The machine has been carefully designed so that there are fewer maintenance-sensitive parts. The service interval of 3,000 hours also ensures lower maintenance costs. With the right filtering, also suitable for damage repair companies but also for controlling sorting machines in the horticultural sector, for example.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary. With Smartcontrol
