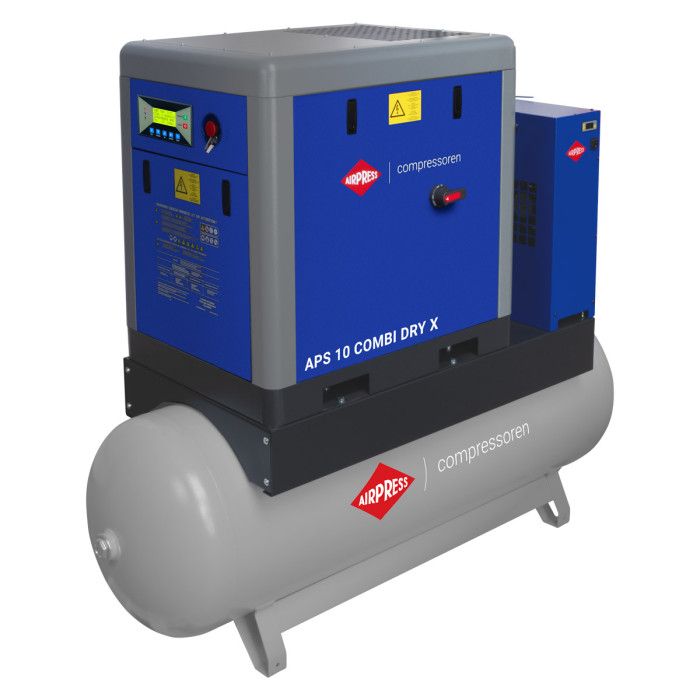

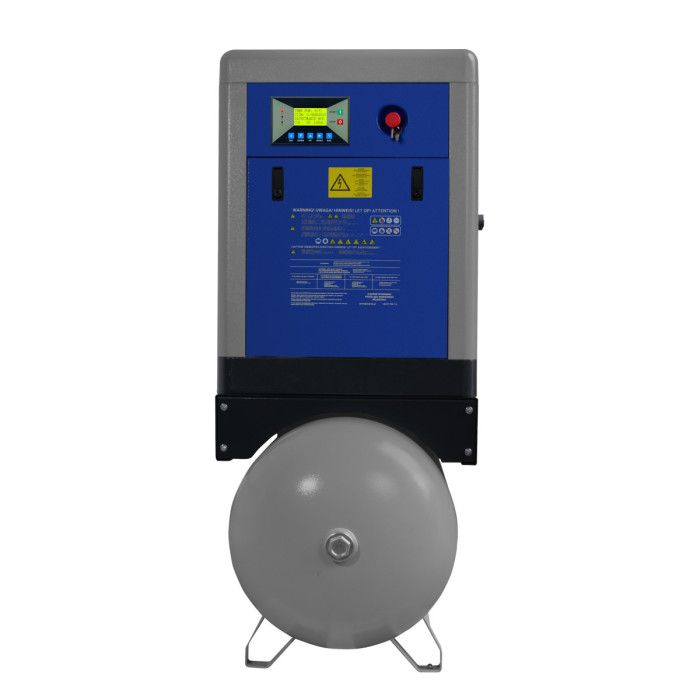

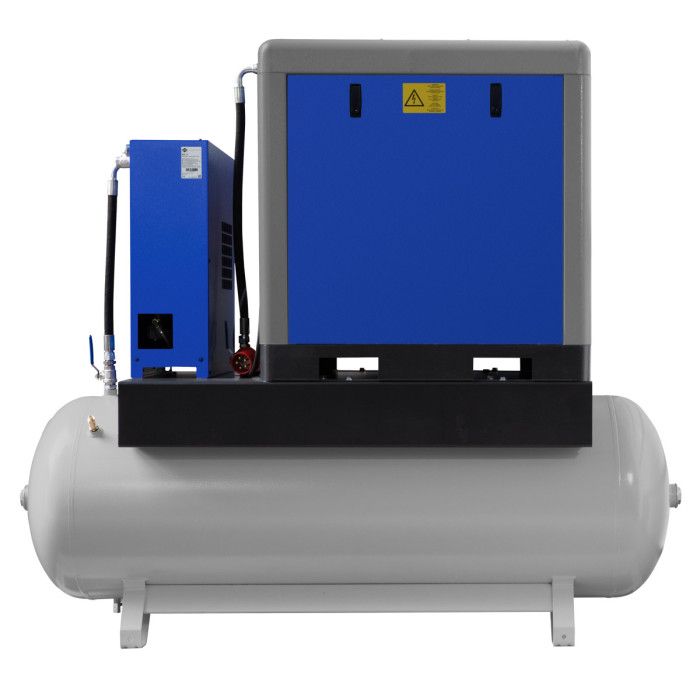

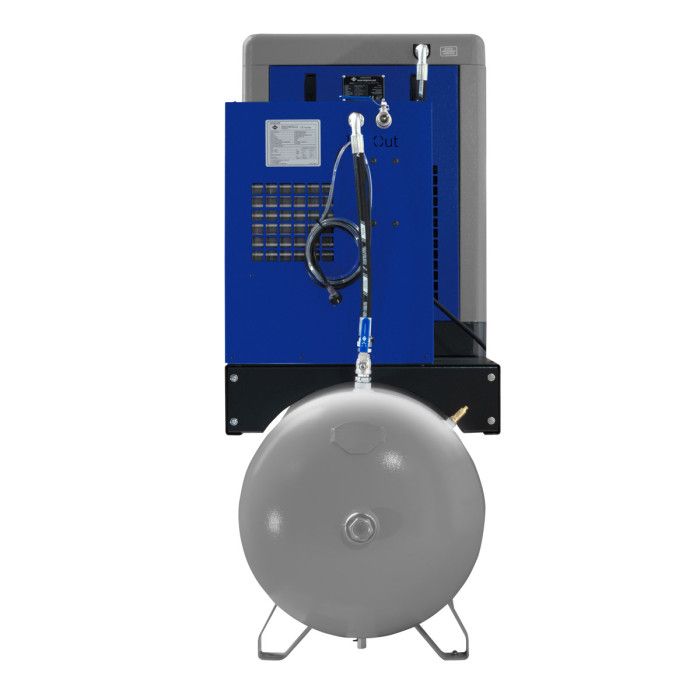

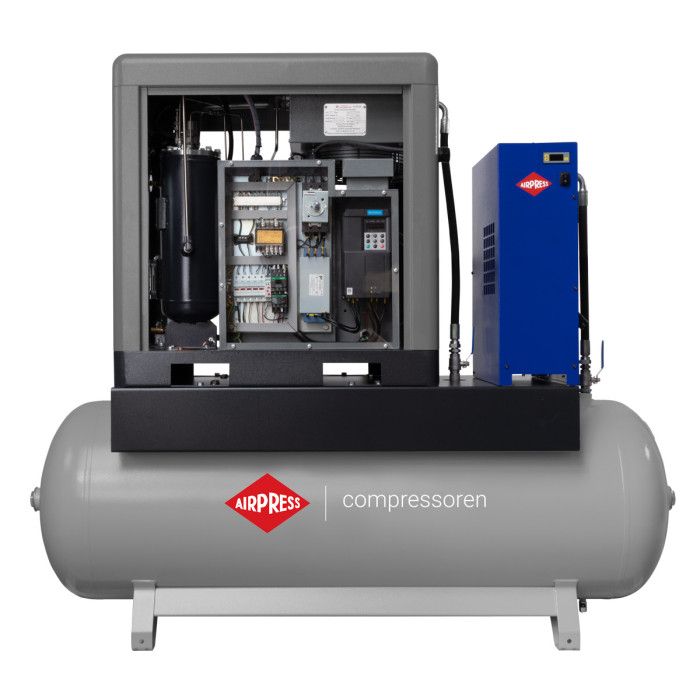

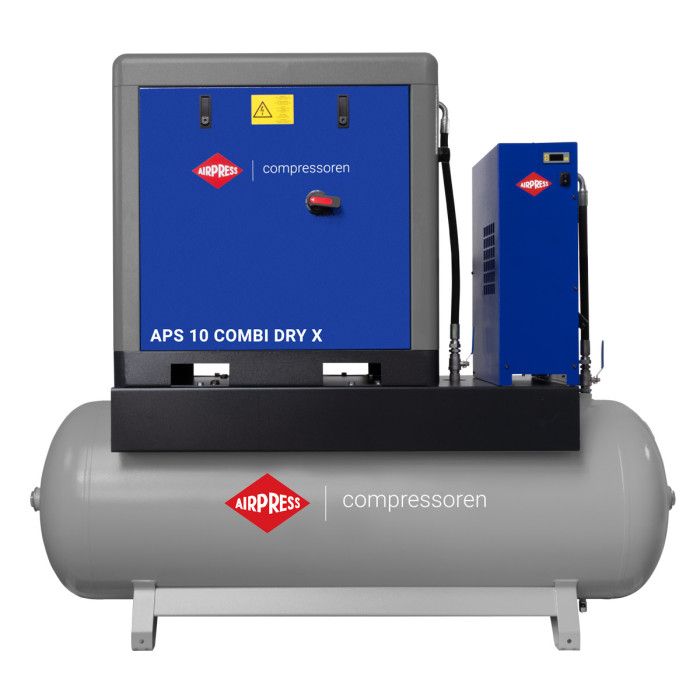

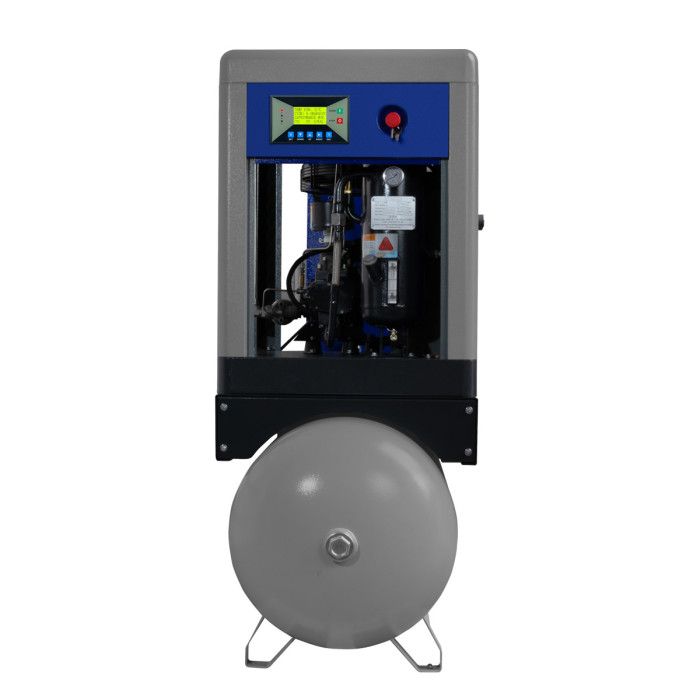

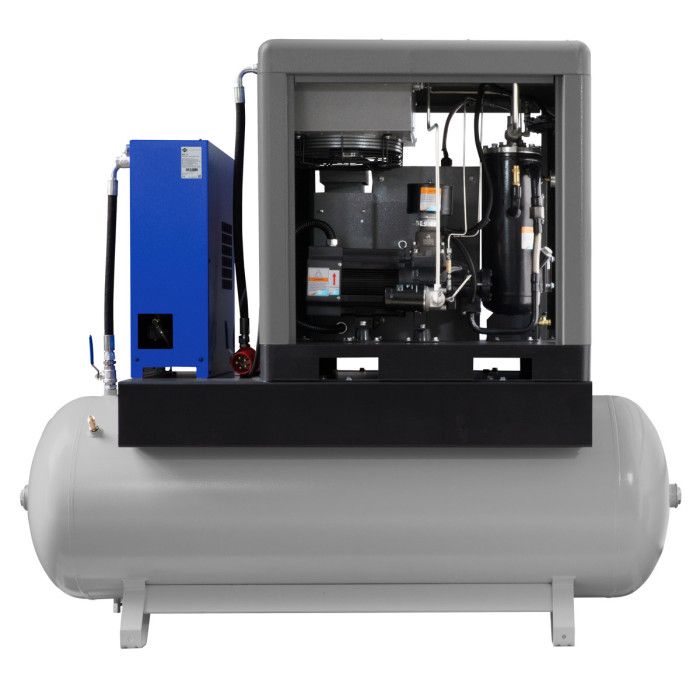

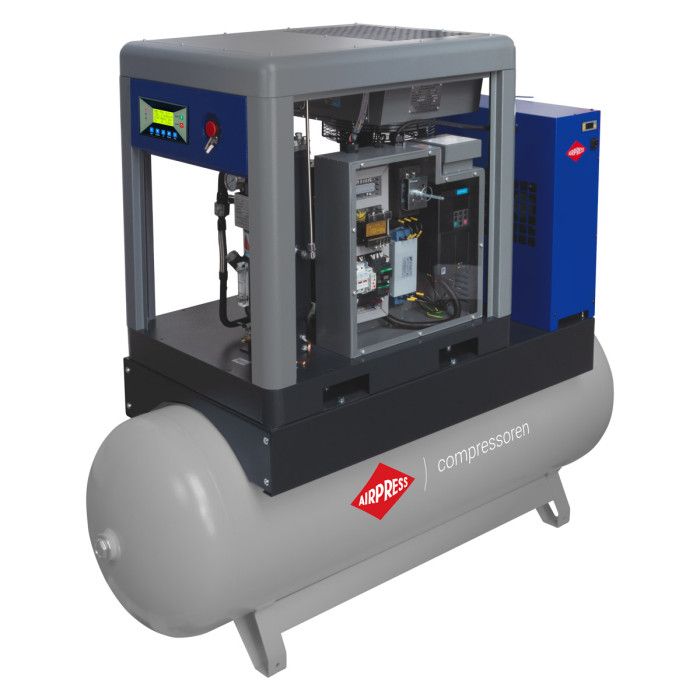

Screw Compressor APS X 10 Combi Dry 10 bar 10 HP/7.5 kW 970 l/min 500 l

Name: Screw Compressor APS X 10 Combi Dry 10 bar 10 HP/7.5 kW 970 l/min 500 l
SKU: 369010-P
Price: 6442.02 CHF
Availability: OutOfStock

Screw Compressor APS X 10 Combi Dry 10 bar 10 HP/7.5 kW 970 l/min 500 l

5.959,32 CHF

Tasse incl.: 6.442,02 CHF

Non Disponibile

SKU 369010-P

Product details Product recommended Product documents Product alternative Product reviews Product parts

Product details

SKU	369010-P
EAN 13	8712418412246
Length (mm)	1902
Width (mm)	620
Height (mm)	1680
Weight (netto) (kg)	405,00
Units per product (pcs.)	1
Workload (labor/rest %)	100/0
Motor power (hp / kW)	10.0 HP / 7.5 kW
Motor efficiency class	IE4
Motor type	AM
Drive	Direct driven 1:1
Control panel	MAM-860
Available languages	English, Dutch, Polish
Dryer	Yes
Air Receiver	Sì
Capacity air receiver (l)	500

Galvanized tank	No
Maximum pressure (bar)	10
Cut-in pressure (bar)	6
Free air delivery (l/min)	970
Free air delivery (m3/h)	58.2
Noise level dB (A) (0 m)	63
Noise level dB(A) (4 m)	43
Plug type	EU
Cooling air volume (m3/h)	3000
Main air connection (")	3/4
Oilfree	No
Stages	1
Start	Y-∆
Voltage (V)	400 V / 50 Hz / 3 Ph
Variable speed (IVR)	No
Pump speed (rpm)	2940
