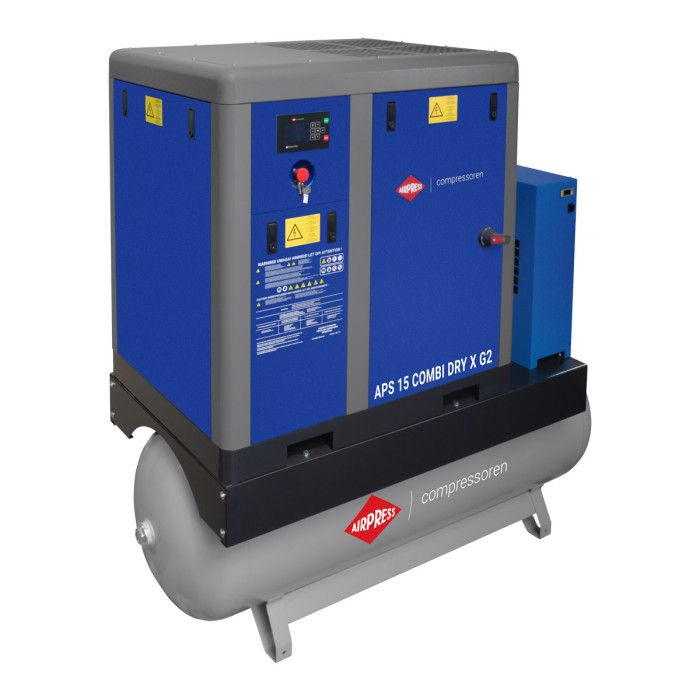

Screw Compressor APS X 15 Combi Dry G2 10 bar 15 HP/11 kW 1440 l/min 500 l

Name: Screw Compressor APS X 15 Combi Dry G2 10 bar 15 HP/11 kW 1440 l/min 500 l
SKU: 369015-G2
Price: 9516.27 CHF
Availability: OutOfStock

Non Disponibile

SKU 369015-G2

Product details Product recommended Product documents Product reviews Product parts

Product details

SKU	369015-G2
EAN 13	8712418428452
Units per product (pcs.)	1
Weight (netto) (kg)	550 kg
Length (mm)	1.902 mm1,902 m
Width (mm)	820 mm8,2 dm
Height (mm)	1.905 mm1,905 m
Drive	Direct driven 1:1
Start	Y-∆
Motor type	AM
Motor power (hp / kW)	15.0 HP / 11.0 kW
Motor efficiency class	IE3
Stages	1
Variable speed (IVR)	No
Pump speed (rpm)	2940
Control panel	AirVision One
Available languages	Dutch, Polish, German, French, Spanish, English, Russian

Air Receiver	Sì
Capacity air receiver (l)	500
Galvanized tank	No
Dryer	Yes
Cooling air volume (m3/h)	7.000 m³/h1,944 kL/s
Workload (labor/rest %)	100/0
Maximum pressure (bar)	10
Cut-in pressure (bar)	6 bar
Free air delivery (l/min)	1.440 L/m2,4 L/h
Free air delivery (m3/h)	86,4 m³/h1,44 m³/min
Noise level dB (A) (0 m)	63
Noise level dB(A) (4 m)	43
Main air connection (")	1
Oilfree	No
Plug type	EU
Voltage (V)	400 V / 50 Hz / 3 Ph
