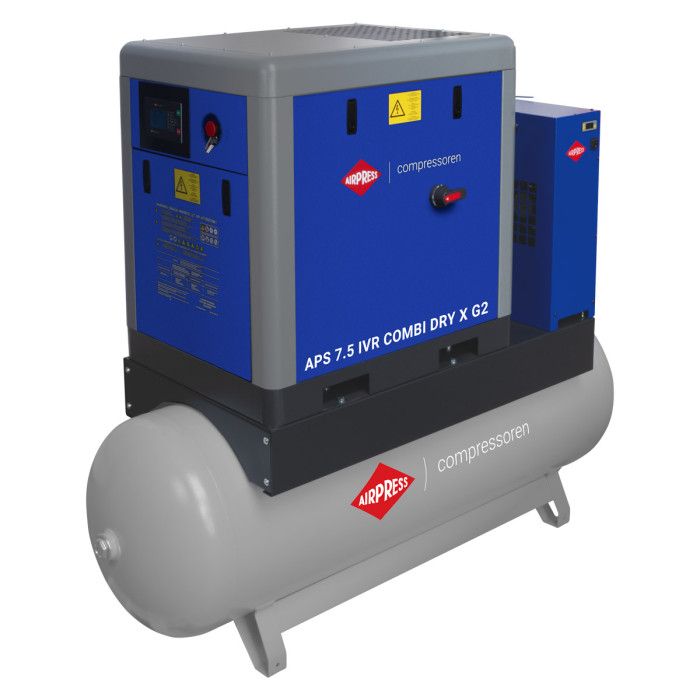

Screw compressor APS X 7.5 IVR Combi Dry G2 10 bar 7.5 HP/5.5 kW 290-790 l/min 500 l

Name: Screw compressor APS X 7.5 IVR Combi Dry G2 10 bar 7.5 HP/5.5 kW 290-790 l/min 500 l
SKU: 369958-IVR-G2
Price: 9480.77 CHF
Availability: OutOfStock

Non Disponibile

SKU 369958-IVR-G2

Product details Product recommended Product documents Product reviews

Product details

SKU	369958-IVR-G2
EAN 13	8712418428506
Units per product (pcs.)	1
Weight (netto) (kg)	405 kg
Length (mm)	1.902 mm1,902 m
Width (mm)	700 mm7 dm
Height (mm)	1.680 mm1,68 m
Drive	Direct driven 1:1
Start	Inverter
Motor type	PM
Motor power (hp / kW)	7.5 HP / 5.5 kW
Motor efficiency class	IE4
Stages	1
Variable speed (IVR)	Sì
Pump speed (rpm)	1100 - 1960
Control panel	AirVision One
Available languages	Dutch, Polish, German, French, Spanish, English, Russian
Air Receiver	Sì
Capacity air receiver (l)	500

Galvanized tank	No
Dryer	Yes
Cooling air volume (m3/h)	3.000 m³/h50 m³/min
Workload (labor/rest %)	100/0
Maximum pressure (bar)	10
Cut-in pressure (bar)	6 bar
Free air delivery at 7 bar (l/min)	790 L/m1,317 L/h
Free air delivery at 8 bar (l/min)	760 L/m1,267 L/h
Free air delivery at 9.5 bar (l/min)	690 L/m1,15 L/h
Minimum free air delivery (l/min)	290 L/m1,74 kL/s
Minimum free air delivery (m3/h)	17,4 m³/h4,833 dm³/s
Maximum free air delivery (l/min)	790 L/m1,317 L/h
Maximum free air delivery (m3/h)	47,4 m³/h2,194 L/m
Noise level dB (A) (0 m)	63
Noise level dB(A) (4 m)	43
Main air connection (")	3/4
Oilfree	No
Plug type	EU
Voltage (V)	400 V / 50 Hz / 3 Ph
