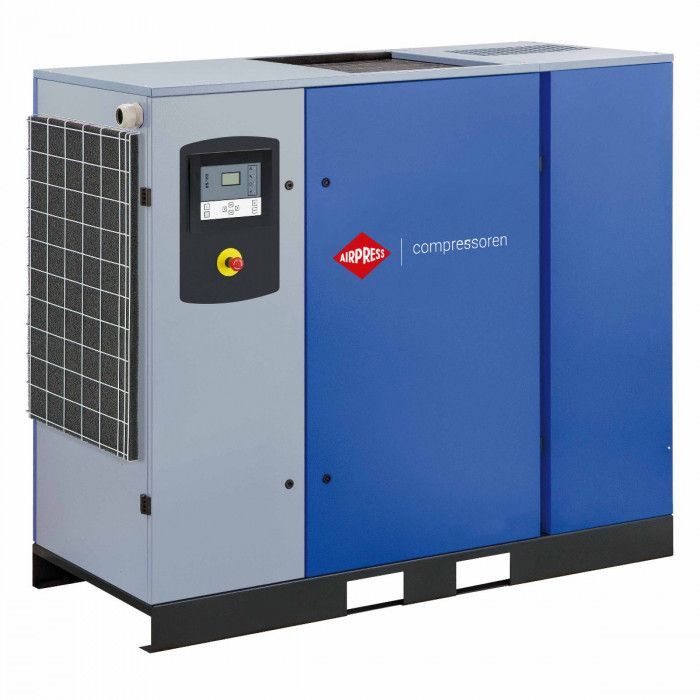

Screw Compressor APS50B Direct Dry 7.5 bar 50 hp 6120 l/min
23.536,57 CHF
Tasse incl.:
23.536,57 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
36450-BDX-7.5
Product details
| SKU | 36450-BDX-7.5 |
|---|---|
| EAN 13 | 8712418392722 |
| Length (mm) | 1810 |
| Width (mm) | 830 |
| Height (mm) | 1555 |
| Weight (netto) (kg) | 744,00 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 50.0 HP / 37.0 kW |
| Motor efficiency class | IE3 |
| Motor type | AC |
| Drive | Gearbox |
| Control panel | ES 4000 STANDARD |
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Air Receiver | No |
| Galvanized tank | No |
| Maximum pressure (bar) | 7.5 |
|---|---|
| Free air delivery (l/min) | 6120 |
| Free air delivery (m3/h) | 367.2 |
| Noise level dB (A) (0 m) | 71 |
| Noise level dB(A) (4 m) | 51 |
| Plug type | EU |
| Cooling air volume (m3/h) | 4800 |
| Main air connection (") | 1 1/4 |
| Oilfree | No |
| Air-end | C80 |
| Stages | 1 |
| Start | Y-∆ |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power cable | 4 x 35 mm2 |
| Variable speed (IVR) | No |
