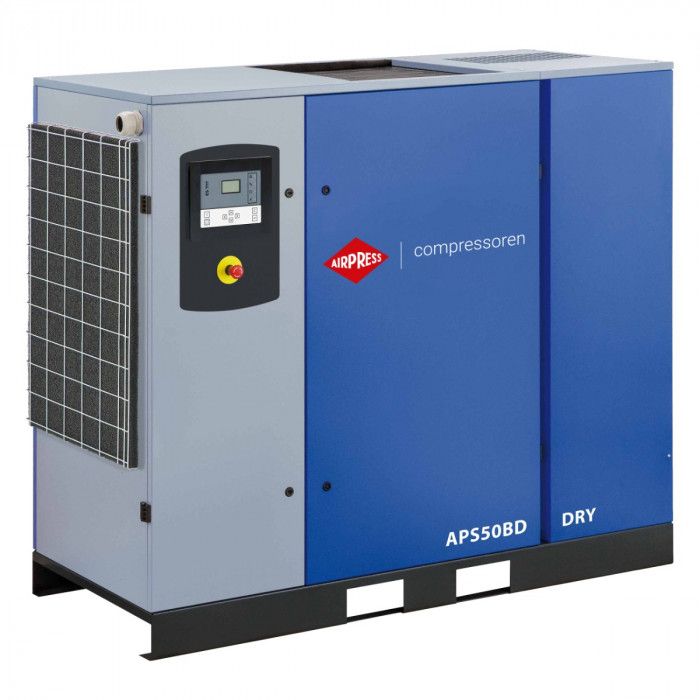

Screw Compressor APS50B DirectDry 10 bar 50 hp 5070 l/min
21.730,23 CHF
Tasse incl.:
21.730,23 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
36450-BDX
Product details
| SKU | 36450-BDX |
|---|---|
| EAN 13 | 8712418359787 |
| Weight (netto) (kg) | 744 kg |
| Length (mm) | 1.810 mm1,81 m |
| Width (mm) | 1.555 mm1,555 m |
| Height (mm) | 1.555 mm1,555 m |
| Drive | Gearbox |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 50.0 HP / 37.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C80 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 STANDARD |
| Air Receiver | No |
| Galvanized tank | No |
|---|---|
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Cooling air volume (m3/h) | 4.800 m³/h1,333 kL/s |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min) | 5.070 L/m8,45 L/h |
| Free air delivery (m3/h) | 304,2 m³/h5,07 m³/min |
| Noise level dB (A) (0 m) | 71 |
| Noise level dB(A) (4 m) | 51 |
| Main air connection (") | 1 1/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power cable | 4 x 35 mm2 |
