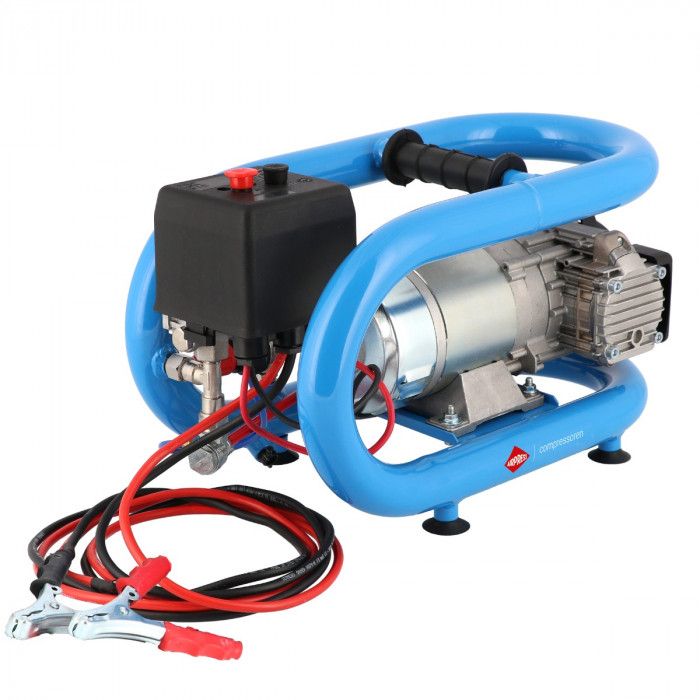

Silent oil free Compressor LMO 3-190 8 bar 0.7 hp 152 l/min 3 l
836,63 CHF
Tasse incl.:
836,63 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
36747
Product details
| SKU | 36747 |
|---|---|
| EAN 13 | 8712418257373 |
| Weight (netto) (kg) | 13 kg |
| Length (mm) | 450 mm4,5 dm |
| Width (mm) | 250 mm2,5 dm |
| Height (mm) | 260 mm2,6 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 0.7 HP / 0.5 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 2400 |
| Air Receiver | Sì |
| Capacity air receiver (l) | 3 |
| Galvanized tank | No |
| Workload (labor/rest %) | 20/80 |
| Maximum pressure (bar) | 8 |
| Cut-in pressure (bar) | 6 bar |
|---|---|
| Intake capacity (l/min) | 190 L/m1,14 kL/s |
| Free air delivery (l/min) | 152 L/m54,72 m³/min |
| Free air delivery (m3/h) | 9,12 m³/h2,533 dm³/s |
| Noise level dB (A) (0 m) | 80 |
| Noise level dB(A) (4 m) | 60 |
| Noise level dB(A) (7 m) | 55 |
| Sound volume reduction | Sì |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Number of reducable couplings air connections | 1 |
| Oilfree | Sì |
| Voltage (V) | 12 V |
| After cooler | No |
| Intercooler | No |
| Wheels | No |
| Filter with reducer | No |
Documenti
Download PDF
Manual EN/FR/DE/NL/PL/CZ/EE/LV/RO/SK/ES/RU 36578,36577,36854,36862,360578,36504,36753,36747,36588,36587,36750,36738,36743,36741-K1,36943,36748,36576,36575
Manual EN/FR/NL/DE/PL 36747
Parts drawing 36747
Parts drawing for pump 36747
manual_36747_web.pdf
OIL_FREE_COMPRESSORS_2025 - WEB.pdf
36747_Parts_list.pdf
