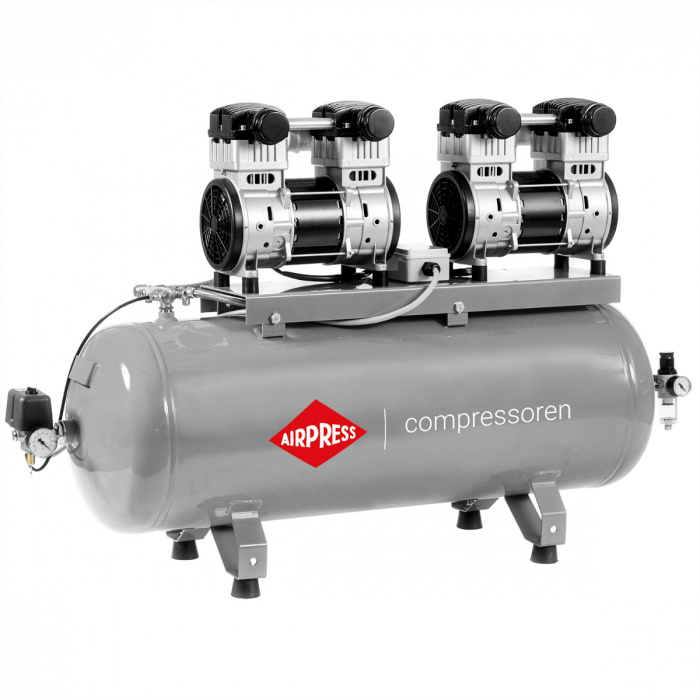

Silent oil free Compressor LMO 384-100 8 bar 3.2 hp/2.4 kW 240 l/min 100 l
2.115,52 CHF
Tasse incl.:
2.115,52 CHF
1.957,00 CHF
Tasse incl.:
2.115,52 CHF
Tasse incl.:
Tasse incl.:
Non Disponibile
SKU
360578
Product details
| SKU | 360578 |
|---|---|
| EAN 13 | 8712418338461 |
| Length (mm) | 1300 |
| Width (mm) | 350 |
| Height (mm) | 800 |
| Weight (netto) (kg) | 72,00 |
| Workload (labor/rest %) | 20/80 |
| Start | Direct |
| Drive | Direct driven 1:1 |
| Cylinders | 4 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Air Receiver | Sì |
| Capacity air receiver (l) | 100 |
| Galvanized tank | No |
| Intake capacity (l/min) | 392 |
| Free air delivery (l/min) | 240 |
| Free air delivery (m3/h) | 14.4 |
| Maximum pressure (bar) | 8 |
| Cut-in pressure (bar) | 6 |
|---|---|
| Main air connection (") | 1/2 |
| Connection type | 2 Universal + 1 Geka |
| Number of reducable couplings air connections | 1 |
| Noise level dB (A) (0 m) | 68 |
| Noise level dB(A) (4 m) | 48 |
| Noise level dB(A) (7 m) | 43 |
| Sound volume reduction | Sì |
| Stages | 1 |
| Oilfree | Sì |
| Filter with reducer | Sì |
| Motor power (hp / kW) | 3.2 HP / 2.4 kW |
| Wheels | No |
| Pump speed (rpm) | 2900 |
| Pump Type | ATF 5,5 PP |
| Intercooler | No |
| After cooler | No |
