Standing Compressor 8 bar 2.5 hp 231 l/min 50 l HL 360-50

ce gs-sud

minus-circle Non Disponibile

SKU 36852
none
Product details Product recommended Product documents Product alternative Product reviews Product parts

Product details

SKU 36852
EAN 13 8712418191462
Weight (netto) (kg) 36,5 kg
Gross weight (kg) 37 kg
Length (mm) 480 mm4,8 dm
Width (mm) 410 mm4,1 dm
Height (mm) 1.050 mm1,05 m
Drive Direct driven 1:1
Start Direct
Motor power (hp / kW) 2.5 HP / 1.8 kW
Cylinders 1
Stages 1
Pump speed (rpm) 2850
Air Receiver Sì
Capacity air receiver (l) 50
Galvanized tank No
Workload (labor/rest %) 30/70
Maximum pressure (bar) 8
Cut-in pressure (bar) 6 bar
Intake capacity (l/min) 288 L/m1,728 kL/s
Free air delivery (l/min) 231 L/m1,386 kL/s
Free air delivery (m3/h) 13,86 m³/h3,85 dm³/s
Noise level dB (A) (0 m) 97
Noise level dB(A) (4 m) 77
Noise level dB(A) (7 m) 72
Sound volume reduction No
Connection type Universal
Number of couplings air connections 1
Number of reducable couplings air connections 1
Oilfree No
Voltage (V) 230 V / 50 Hz / 1 Ph
After cooler No
Intercooler No
Wheels Sì
Filter with reducer No

Product recommended

È possibile navigare tra gli elementi del carosello utilizzando il tasto tabulazione. È possibile saltare il carosello o passare direttamente alla navigazione del carosello utilizzando i link di salto.
Piston compressor oil 0.6 l
Piston compressor oil 0.6 l 12495
5,70 CHF 6,16 CHF
Visualizza dettagli
Air tool accessories set 7 parts
Air tool accessories set 7 parts 45895
29,35 CHF 31,73 CHF
Visualizza dettagli
Pneumatic impact wrench 786 Nm 1/2" +/- 225 l/min with 6 sockets
Pneumatic impact wrench 786 Nm 1/2" +/- 225 l/min with 6 sockets 45537
181,89 CHF 196,62 CHF
Visualizza dettagli
Tire inflator with plugin nipples 12 bar
Tire inflator with plugin nipples 12 bar 42078
21,43 CHF 23,17 CHF
Visualizza dettagli
Air hose reel wall mounting 8 bar 9 m 1/4" 12 x 8 mm PU
Air hose reel wall mounting 8 bar 9 m 1/4" 12 x 8 mm PU 46576
54,82 CHF 59,26 CHF
Visualizza dettagli
Air hose Euro 20 bar 10 m 14 x 8 mm hybrid polymer
Air hose Euro 20 bar 10 m 14 x 8 mm hybrid polymer 40400
26,40 CHF 28,54 CHF
Visualizza dettagli
Piston compressor oil 1 l
Piston compressor oil 1 l 12494
8,70 CHF 9,40 CHF
Visualizza dettagli
Spiral air hose 10 bar 7.5 m 1/4" 12 x 8 mm PU with a set of couplings and nipples
Spiral air hose 10 bar 7.5 m 1/4" 12 x 8 mm PU with a set of couplings and nipples 4304225
29,30 CHF 31,67 CHF
Visualizza dettagli
Air hose reel 15 bar 30 m 1/4" 12 x 8 mm hybrid polymer
Air hose reel 15 bar 30 m 1/4" 12 x 8 mm hybrid polymer 46573
156,70 CHF 169,39 CHF
Visualizza dettagli
Digital tire inflator 10 bar 60 cm
Digital tire inflator 10 bar 60 cm 42064
20,86 CHF 22,55 CHF
Visualizza dettagli
Air blow gun with Pressure control head
Air blow gun with Pressure control head 4300003
18,29 CHF 19,77 CHF
Visualizza dettagli

Documenti

document-report Download PDF document-text Spare parts list 36852 document-text Manual EN/FR/NL/DE/PL/ES/UA/CZ/LT/LV/EE/RO/SK/HU 36546, 36744-E, 36839-1, 36856, 36832, 36852, 36833, 36843, 36888, 36834, 36826, 36827, 36828, 36844-E, 36891, 36871, 36872 document-text 13.12.2024 - BLUE SERIES PISTON COMPRESSORS OIL LUBRICATED_2024 - WEB.pdf document-text 36852 - SPARE PARTS LIST 2024.pdf

Product alternative

È possibile navigare tra gli elementi del carosello utilizzando il tasto tabulazione. È possibile saltare il carosello o passare direttamente alla navigazione del carosello utilizzando i link di salto.
Compressor HL 425-24 8 bar 3 hp 260 l/min 24 l
Compressor HL 425-24 8 bar 3 hp 260 l/min 24 l 36833
272,42 CHF 294,49 CHF
Visualizza dettagli
Compressor HL 325-50 8 bar 2.5 hp 195 l/min 50 l
Compressor HL 325-50 8 bar 2.5 hp 195 l/min 50 l 36832
166,13 CHF 179,59 CHF
Visualizza dettagli

Recensioni dei clienti

Scrivi la tua recensione
Stai recensendo: Standing Compressor 8 bar 2.5 hp 231 l/min 50 l HL 360-50
loader
Caricamento...

check-circle Hai inviato la tua recensione per la moderazione.

Related Components

Reducer for HL 360/50
Reducer for HL 360/50 36852058
20,47 CHF 22,13 CHF
Visualizza dettagli
Connection hose 30 cm 1/4" x 1/4" male for HL 360-50
Connection hose 30 cm 1/4" x 1/4" male for HL 360-50 36852076
7,41 CHF 8,01 CHF
Visualizza dettagli
Tires and vibration damper for HL 360-50
Tires and vibration damper for HL 360-50 36851-51
25,12 CHF 27,15 CHF
Visualizza dettagli
Pressure regulator complete (manometer, hose, pressure switch, safety valve, compressed air coupling)
Pressure regulator complete (manometer, hose, pressure switch, safety valve, compressed air coupling) 36851-59-1
41,31 CHF 44,66 CHF
Visualizza dettagli
Capacitor for HL 360/50
Capacitor for HL 360/50 36852042
10,14 CHF 10,96 CHF
Visualizza dettagli
Head gasket
Head gasket 36851-04
2,34 CHF 2,53 CHF
Visualizza dettagli
Fan cooling fin
Fan cooling fin 36851-35
2,34 CHF 2,53 CHF
Visualizza dettagli
Crankshaft for HL 360/50
Crankshaft for HL 360/50 36852018
7,28 CHF 7,87 CHF
Visualizza dettagli
Rubber gasket for HL 360/50
Rubber gasket for HL 360/50 36852020
2,44 CHF 2,64 CHF
Visualizza dettagli
Valve plate gasket for HL 360/50
Valve plate gasket for HL 360/50 36852005
2,34 CHF 2,53 CHF
Visualizza dettagli
Cylinder gasket for HL 360/50
Cylinder gasket for HL 360/50 36852009
2,34 CHF 2,53 CHF
Visualizza dettagli
Piston pin for HL 360/50; HL 325/50
Piston pin for HL 360/50; HL 325/50 36852015
2,34 CHF 2,53 CHF
Visualizza dettagli
Delivery pipe for HL 360/50
Delivery pipe for HL 360/50 36852082
5,22 CHF 5,64 CHF
Visualizza dettagli
Discharge pipe for HL 360/50
Discharge pipe for HL 360/50 36852063
3,98 CHF 4,30 CHF
Visualizza dettagli
Crankcase cover for HL 360/50
Crankcase cover for HL 360/50 36852023
2,34 CHF 2,53 CHF
Visualizza dettagli
Valve plate for HL 360/50
Valve plate for HL 360/50 36852004
4,73 CHF 5,11 CHF
Visualizza dettagli
Plastic kneading board for HL 360/50
Plastic kneading board for HL 360/50 36852056
7,96 CHF 8,60 CHF
Visualizza dettagli
Piston oil ring for HL 360/50; HL 325/50
Piston oil ring for HL 360/50; HL 325/50 36852013
3,98 CHF 4,30 CHF
Visualizza dettagli
Oil level control eye for HL360/50
Oil level control eye for HL360/50 36852026
2,34 CHF 2,53 CHF
Visualizza dettagli
Cover for HL 360/50
Cover for HL 360/50 36852048
7,17 CHF 7,75 CHF
Visualizza dettagli

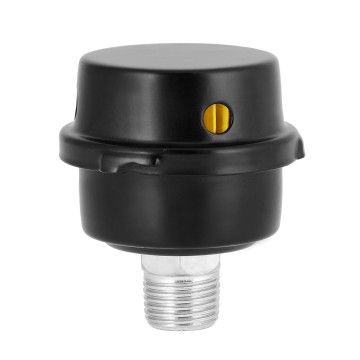

Air filter 1/2" fi 64 mm cup
Air filter 1/2" fi 64 mm cup 36852045
9,84 CHF 10,64 CHF
Visualizza dettagli
Air filter 1/2"
Air filter 1/2" 4300012
10,39 CHF 11,23 CHF
Visualizza dettagli
Connecting rod for HL 360/50
Connecting rod for HL 360/50 36852017
3,53 CHF 3,82 CHF
Visualizza dettagli
Head knee for HL 360/50 1/2" x 1/2"
Head knee for HL 360/50 1/2" x 1/2" 36852046
4,80 CHF 5,19 CHF
Visualizza dettagli
Cylinder
Cylinder 36851-09
8,55 CHF 9,24 CHF
Visualizza dettagli
Part for valve plate for HL 360/50 / 325/50
Part for valve plate for HL 360/50 / 325/50 36852006
8,38 CHF 9,06 CHF
Visualizza dettagli
Complete unit for HL 360-50
Complete unit for HL 360-50 368520U
146,95 CHF 158,85 CHF
Visualizza dettagli
Pressure switch 230 V 1/4" 10 bar
Pressure switch 230 V 1/4" 10 bar 4304011
23,32 CHF 25,21 CHF
Visualizza dettagli
