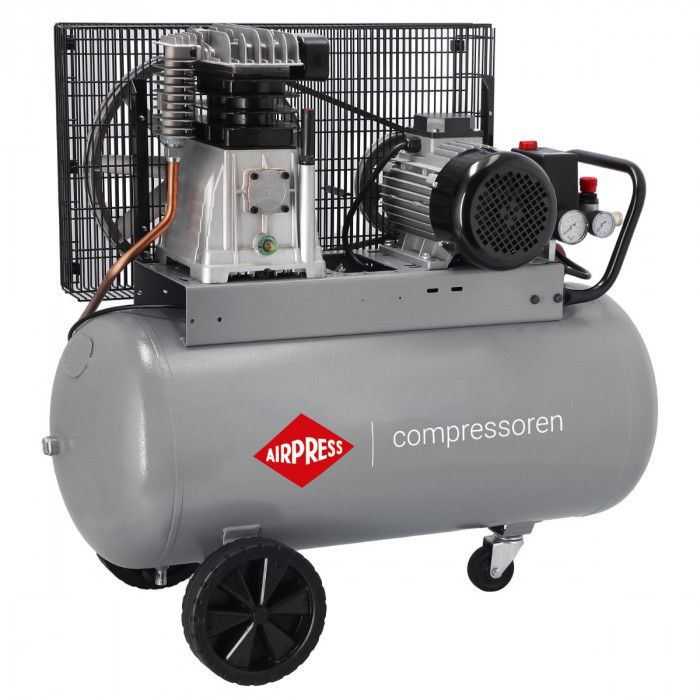

Compressor HK 600-90 10 bar 4 hp 336 l/min 90 l

Non Disponibile

SKU 360670

Product details Product recommended Product documents Product alternative Product reviews Product parts

Product details

SKU	360670
EAN 13	8712418332674
Length (mm)	980
Width (mm)	460
Height (mm)	890
Weight (netto) (kg)	78,00
Workload (labor/rest %)	50/50
Start	Direct
Drive	V-belt driven
Belt size	A57 (1448)
Flywheel diameter (mm)	350
Pulley diameter (mm)	160
Cylinders	2
Voltage (V)	400 V / 50 Hz / 3 Ph
Air Receiver	Sì
Capacity air receiver (l)	90
Galvanized tank	No
Intake capacity (l/min)	480
Free air delivery (l/min)	355

Free air delivery (m3/h)	21.3
Maximum pressure (bar)	10
Cut-in pressure (bar)	8
Main air connection (")	1/4
Connection type	Universal + Euro
Number of reducable couplings air connections	1
Noise level dB (A) (0 m)	97
Noise level dB(A) (4 m)	77
Noise level dB(A) (7 m)	72
Sound volume reduction	No
Stages	1
Oilfree	No
Filter with reducer	No
Motor power (hp / kW)	4.0 HP / 3.0 kW
Wheels	Sì
Pump speed (rpm)	1400
Pump Type	B3800B
Intercooler	No
After cooler	Sì
