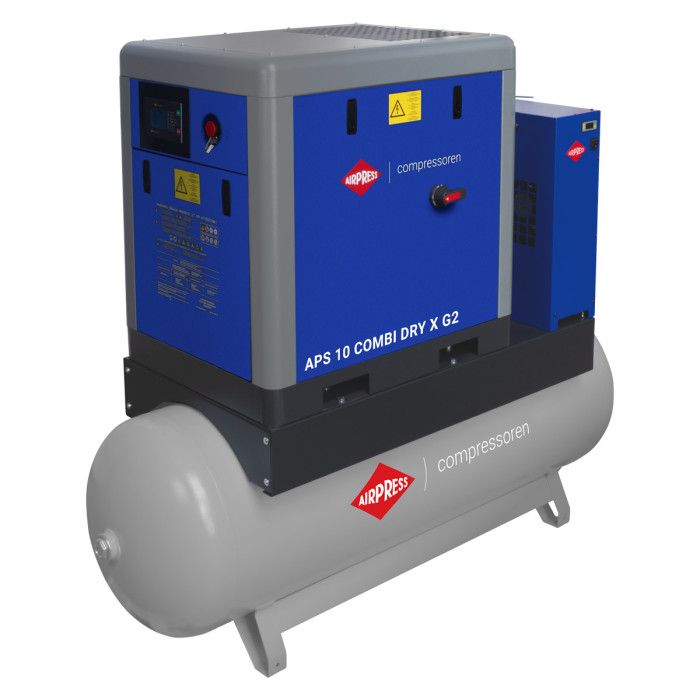

Screw Compressor APS X 10 Combi Dry G2 10 bar 10 HP/7.5 kW 970 l/min 500 l

Name: Screw Compressor APS X 10 Combi Dry G2 10 bar 10 HP/7.5 kW 970 l/min 500 l
SKU: 369010-G2
Price: 7097.63 CHF
Availability: OutOfStock

Non Disponibile

SKU 369010-G2

Product details Product recommended Product documents Product alternative Product reviews Product parts

Product details

SKU	369010-G2
EAN 13	8712418428438
Length (mm)	1902
Width (mm)	620
Height (mm)	1680
Weight (netto) (kg)	405,00
Units per product (pcs.)	1
Workload (labor/rest %)	100/0
Motor power (hp / kW)	10.0 HP / 7.5 kW
Motor efficiency class	IE3
Motor type	AM
Drive	Direct driven 1:1
Control panel	AirVision One
Available languages	French, English, Dutch, Polish, German, Spanish, Russian
Dryer	Yes
Air Receiver	Sì
Capacity air receiver (l)	500

Galvanized tank	No
Maximum pressure (bar)	10
Cut-in pressure (bar)	6
Free air delivery (l/min)	970
Free air delivery (m3/h)	58.2
Noise level dB (A) (0 m)	63
Noise level dB(A) (4 m)	43
Plug type	EU
Cooling air volume (m3/h)	3000
Main air connection (")	3/4
Oilfree	No
Stages	1
Start	Y-∆
Voltage (V)	400 V / 50 Hz / 3 Ph
Variable speed (IVR)	No
Pump speed (rpm)	2940
