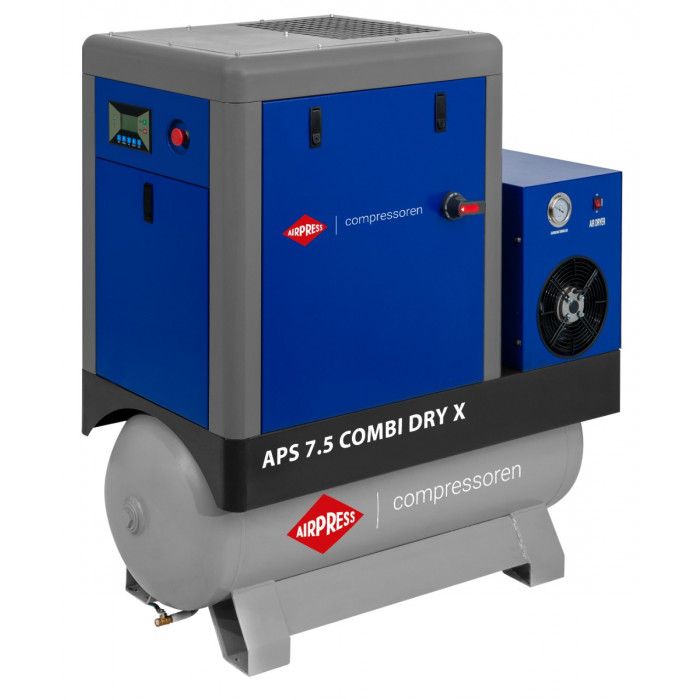

Screw Compressor APS 7.5 Combi Dry X 10 bar 7.5 hp 690 l/min 200 l
Non Disponibile
Product details
| SKU | 369007 |
|---|---|
| EAN 13 | 8712418361766 |
| Length (mm) | 1400 |
| Width (mm) | 600 |
| Height (mm) | 1430 |
| Weight (netto) (kg) | 310,00 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
| Motor efficiency class | IE3 |
| Motor type | AC |
| Drive | Direct driven 1:1 |
| Control panel | MAM-860 |
| Available languages | English, Dutch, Polish |
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Air Receiver | Sì |
| Capacity air receiver (l) | 200 |
| Galvanized tank | No |
|---|---|
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 |
| Free air delivery (l/min) | 690 |
| Free air delivery (m3/h) | 41.4 |
| Noise level dB (A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 43 |
| Plug type | EU |
| Main air connection (") | 3/4 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | No |
| Stages | 1 |
| Start | Y-∆ |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Variable speed (IVR) | No |
Product recommended
Product description
The Airpress APS 7.5 Combidry X is a direct driven screw compressor with a fixed speed. Due to the compact design, this machine does not take up much space, but it does have a 200 liter compressed air boiler and a cooling dryer. The direct drive ensures a 1 on 1 transfer from the electric motor to the screw block, so that no losses occur. A large screw block ensures a high airflow at a low speed. The most important parameters can be read and adjusted on the display of the controller. A large oil cooler with fan, which temperature is switched, provides excellent cooling. The machine has been carefully designed so that fewer parts are maintenance-sensitive and the machine is therefore very durable. The service interval of 3,000 hours also ensures lower maintenance costs.
With Smartcontrol
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
